010S

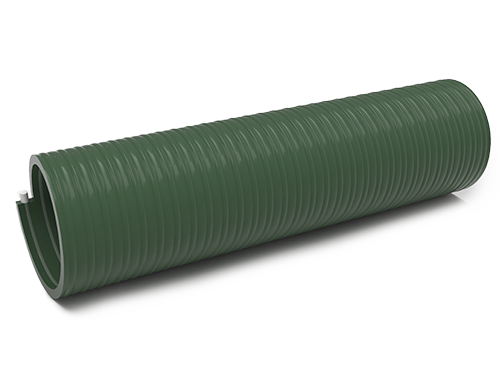

Superelastic Liquids and Abrasives Suction & Delivery Hose

This hose can be used for suction and delivery of fresh and sea water, sewage, fertilizers, chemical solutions, abrasive solids and slurries etc.

Structure

3. Solid dark green, soft PVC inner layer
2. Perfect circle, rigid, white PVC spiral
1. Solid dark green, soft PVC outer wall
010S: Superelastic Liquids and Abrasives Suction & Delivery Hose

Technical parameters

code inch mm gr/m bar mbar mm m
F010S019 3/4 19 335 7 850 80 25/30/50
F010S020 20 335 7 850 80 25/30/50
F010S025 1 25 400 7 850 100 25/30/50
F010S030 30 535 6 850 120 25/30/50
F010S032 1 1/4 32 580 6 850 128 25/30/50
F010S035 35 610 5 850 140 25/30/50
F010S038 1 1/2 38 680 5 850 152 25/30/50
F010S040 40 710 5 850 160 25/30/50
F010S045 1 3/4 45 815 5 850 180 25/30/50
F010S051 2 51 970 5 850 200 25/30/50
F010S055 55 1065 4.5 850 220 25/30/50
F010S060 60 1240 4.5 850 240 25/30/50
F010S063 2 1/2 63 1405 4.5 750 252 25/30/50
F010S070 2 2/3 70 1550 4 750 280 25/30/50
F010S076 3 76 1680 4 750 300 25/30/50
F010S080 80 1795 4 750 320 25/30/50
F010S090 3 1/2 90 2055 4 750 360 25
F010S0102 4 102 2600 3 750 400 25
F010S0110 4 1/2 110 2910 3 750 440 25
F010S0120 120 3200 3 750 470 25
F010S0127 5 127 3395 3 750 500 25
F010S0152 6 152 5000 2.5 750 600 25

* Working and bursting pressure valid at 20°C
** Length tolerance +/- 5%
*** Inner Diemeter tolerance +/- 2%

Available colors:
